Attack Surface Reduction Rules

Introduction

This article is about Attack Surface Reduction (ASR) rules - what they are, the affect they can have on Omnidocs solutions and our recommended approach to manage them in situations where files are blocked.

What are ASR rules?

Microsoft Defender for Endpoint attack surface reduction (ASR) rules are a security feature designed to eliminate threats on the organization's devices and network. It can be considered as a set of policies that can be activated to block certain files

It is a powerful and widespread tool used in many modern IT infrastructures.

Attack surface reduction rules target certain software behaviours, such as:

Launching executable files and scripts that attempt to download or run files
Running obfuscated or otherwise suspicious scripts
Performing behaviors that apps don't usually initiate during normal day-to-day work

See https://learn.microsoft.com/en-us/defender-endpoint/attack-surface-reduction

Attack surface reduction rules contain one of four settings:

Not configured/Disabled: The attack surface reduction rule is disabled
Block/Enabled: The attack surface reduction rule is enabled
Audit: Allows evaluation how the attack surface reduction rule would impact the organization if enabled - files that would be blocked can be seen in the attack surface reduction rules reporting page in the Microsoft Defender portal
Warn: The attack surface reduction rule is enabled but allows the end user to bypass the block

Best practice is to test ASR rules in audit mode on a number of devices before enabling them for the whole organization.

See a list of ASR rules here:
https://learn.microsoft.com/en-us/defender-endpoint/attack-surface-reduction-rules-reference#per-rule-descriptions

Affect on Omnidocs Solutions

ASR rules have been identified to have affected Omidocs solutions to a significant degree where key parts of functionality is rendered unusable.

Known issue 1 - Block Win32 API calls from Office macros - Office VBA Add-ins

Rule ID: 92e97fa1-2edf-4476-bdd6-9dd0b4dddc7b

This rule has been found to block macro enabled add-ins in Word, PowerPoint and Excel.

Examples of error messages in the Office programs:

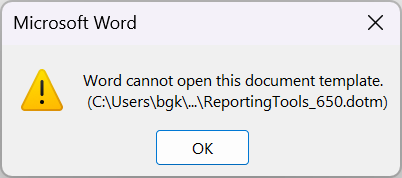

Word

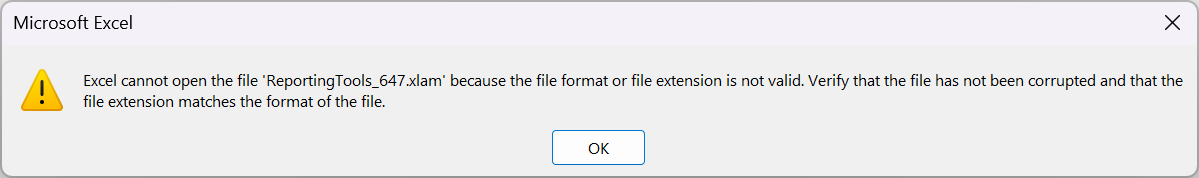

Excel

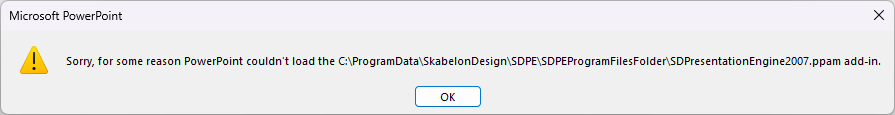

PowerPoint

Known issue 2 - Block all Office applications from creating child processes - Java.exe, a prerequisite of Accessibility Assistant PDF export

Rule ID: d4f940ab-401b-4efc-aadc-ad5f3c50688a

This rule blocks Office apps from creating child processes. Office apps include Word, Excel, PowerPoint, OneNote, and Access.

Accessibility Assistant uses Java in the PDF export process and having Java.exe blocked by this rule makes it undetectable and unusable thus prevents the export with Accessibility Assistant

Identifying ASR blocked files with Event Viewer

Windows Event Viewer offers a low risk way to identify both the file being blocked and the id of the rule enforcing it. Events here will show the Warning level.

To access the log open Windows Event Viewer and browse to Applications and Services Logs > Microsoft > Windows > Windows Defender > Operational.

The ID of the log message is the GUID of the ASR rule and the Path shows which file is being blocked.

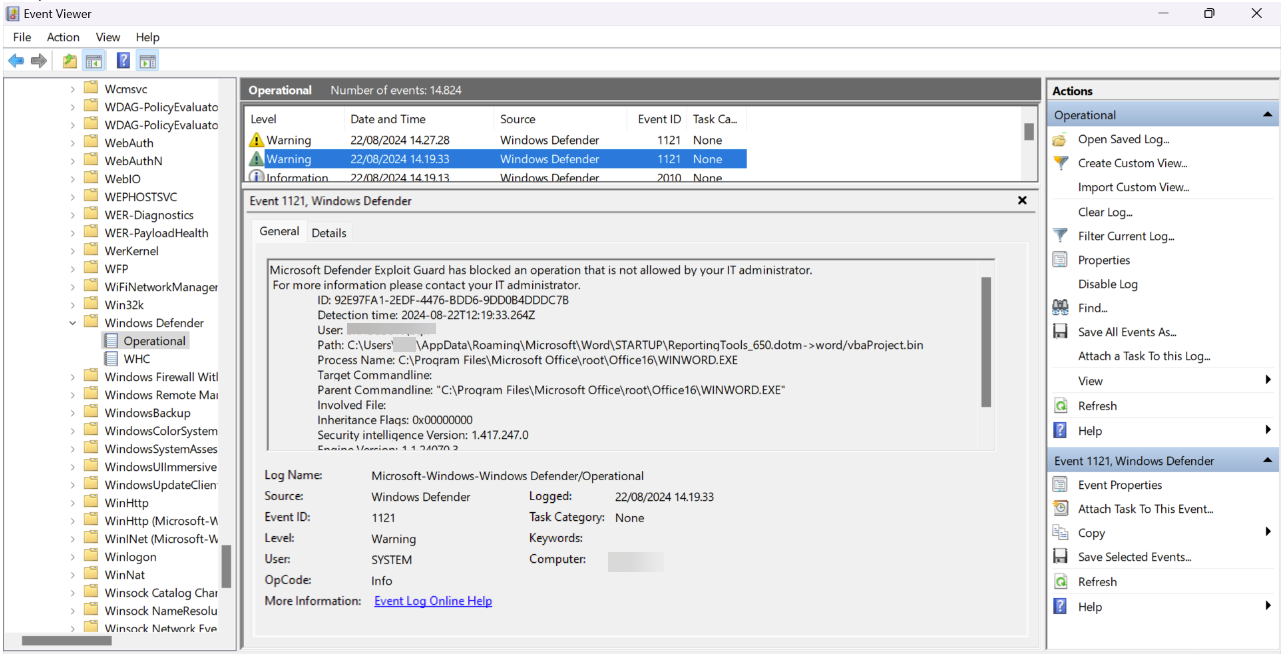

Example 1. Word add-in is blocked by ASR:

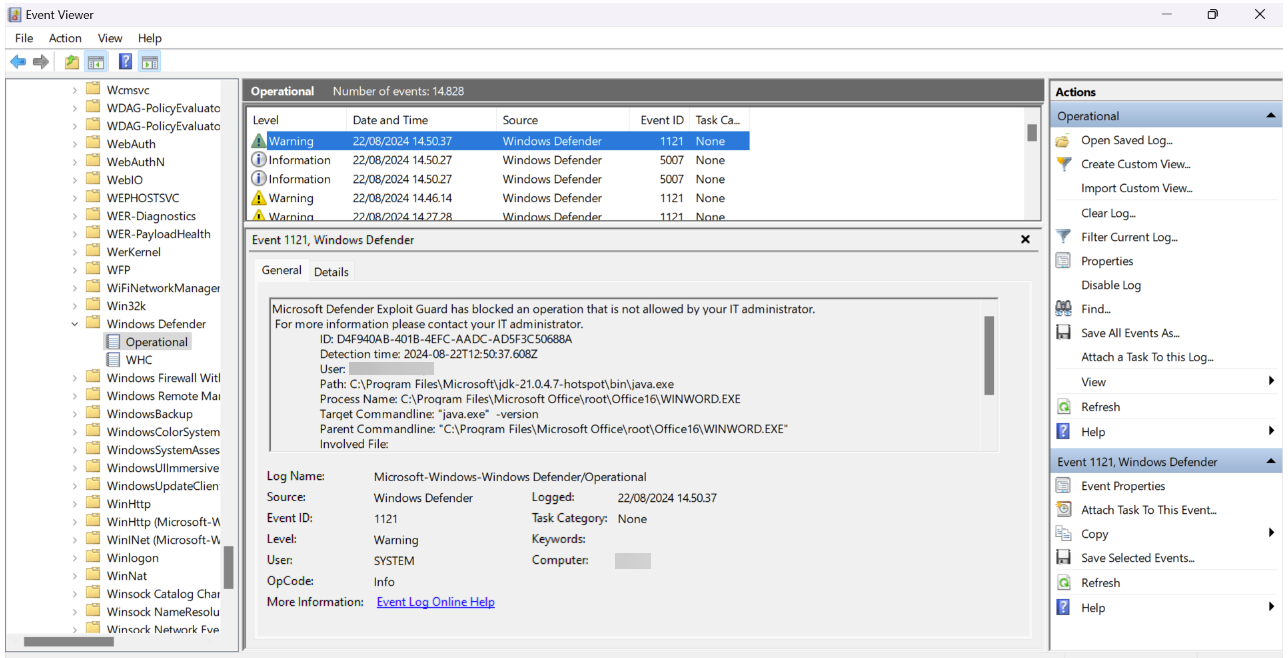

Example 2. Java is blocked by ASR:

Unblocking files with per rule exceptions

Per Rule Exclusions are our recommended method to prevent the known issues with VBA add-ins and AA export. It is the minimal impact on the hardening of the device whilst ensuring the operation of our solutions. It is only useful if it is known, which ASR rule is blocking the given file(s).

Read more about configuring per rule exceptions here:

https://learn.microsoft.com/en-us/defender-endpoint/attack-surface-reduction-rules-deployment-test#configure-attack-surface-reduction-per-rule-exclusions
